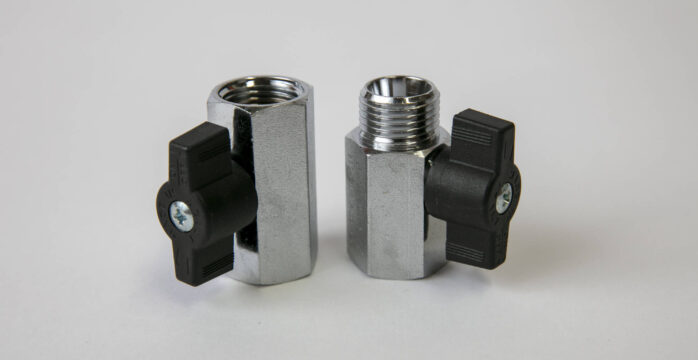

B34T Mini Ball Valve

B34T Mini Ball valves features a one piece drawn sand blasted brass body incorporating a stem neck which provides excellent guidance of the stem.


  • Each valve is seal tested for maximum safety
  • Pure PTFE self lubricating seats with flexible lip design
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • Chrome plated brass ball for longer life
  • No metal-to-metal moving parts
  • Two FM O-rings at the stem for maximum safety
  • No maintenance ever required
  • Silicon free lubricant
  • Max. CWP 1500 kPa
  • Max. Temp. 90oC
