Wear Studs

AVT stud welded Wear Studs are available in 3 specifications: Standard Range, Premium Range, and High Performance Range.

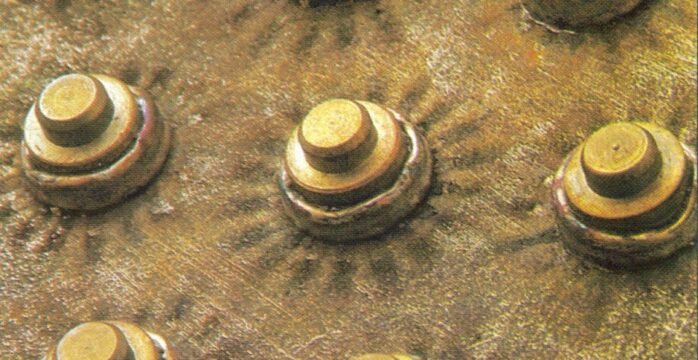

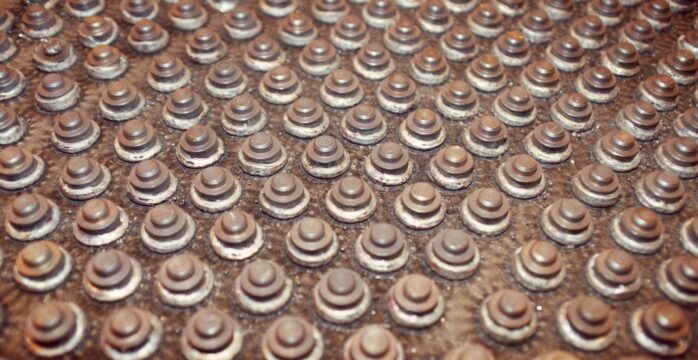

Wear Studs reduce wear on surfaces exposed to abrasion by forming a barrier between the machinery and the material being moved. It consists of applying high-chromium and high-carbon abrasion resistant studs to machinery in close formation.


Features

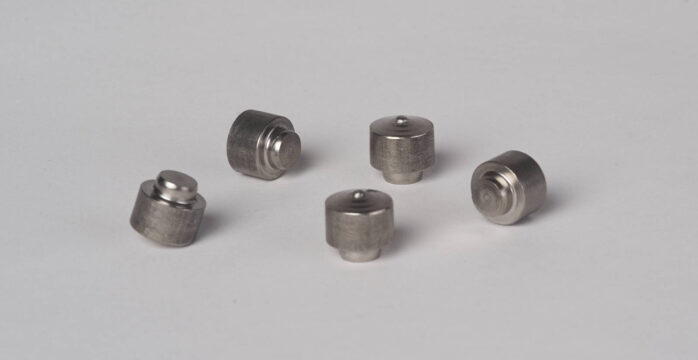

  • Standard Range – available in M16 & M20 diameters and maintain a core hardness after welding of 58-60HRC.
  • Premium Range – available in M16 diameters, features a tapered top that fits perfectly into the chuck, is fast loading for efficiency, and maintains a core hardness after welding of 58-60HRC.
  • High Performance Range – available in M16 diameters, features a Tungsten Carbide insert for higher wear resistance, recommended for use across 10 – 20% of total surface area for additional durability, and maintain a core hardness after welding of 1,200HV.
